After installing VMware ESXi on Mordor, the next step in my Mordor 1.0 -> Mordor 2.0 project is to regain the basic Mordor 1.0 functionality based on a VM, AKA, set up an unRAID-powered-NAS.

In this post I document the details of my experience of setting up unRAID (version 5.0-beta12a) on my ESXi server (running version 5.1.0). I describe creating a VM on ESXi that boots from a physical USB flash drive (using Plop Boot Manager), my adventures with trying to passthrough the onboard SATA controller to the VM (spoiler: it failed), and other options for configuring the data drives for the VM (Raw Device Mapping, VMDirectPath I/O passthrough).

By far, the most useful resource that guided me in this process was the amazingly detailed documentation by the unRAID user Johnm in his ATLAS post in the Lime Tech forum. I have used guidance and tips from his post extensively, and will probably repeat some in this post.

Challenges and Requirements

So, what are the challenges in running unRAID as a VM? And what are some of the requirements I have from this set up and migration process?

1. unRAID runs from a USB flash drive as its boot media, and persistent memory for configuration and plugins, but ESXi doesn’t offer a “boot a VM from USB flash drive” option, nor does it support simulating a USB flash drive as a VM booting media.
2. The main function of unRAID is to manage storage. Thus, it makes sense to give unRAID complete and absolute control of the NAS hard-drives it will manage. ESXi, running on VT-d-enabled hardware, has support for DirectPath I/O passthrough – but it is far from simple and/or straight forward to use it directly with physical drives…
3. I don’t have the luxury of having separate “production” and “staging” servers, to experiment without affecting my actual system and data. Mordor 1.0 managed 3 data-drives (2TB each), and this is all the large drives I have, so I must have the unRAID VM working with the existing configuration and data, while minimizing the risk that something bad happens to my data during the process.

Create an unRAID VM that boots from a USB flash drive using Plop Boot Manager

To tackle the first challenge – I decided to go for a solution that allows a VM to boot from a physical USB flash drive, using the Plop Boot Manager.

The Plop Boot Manager is a minimal program that allows booting various operating systems from various devices (e.g. CD, floppy, USB), with no dependency on BIOS (it is bundled with drivers for IDE-CDROM and USB).

The game plan is to create a Plop image that boots from USB, and have the unRAID VM use that image as a boot-CD image. Following is a detailed description of my implementation of this plan.

Make a Plop Boot Manager image (on Windows)

1. Download the Plop Boot Manager, and the PLPBT-createiso tool (see the download page, I used the latest available, which was 5.0.14 at the time).
2. The default behavior of Plop Boot Manager is to display a menu with all possible boot devices detected, and let the user choose which device to boot from:




   The default Plop Boot Manager boot sequence, viewed in vSphere



   I want to change this behavior, so the VM automatically and immediately boots from USB.
3. Extract the plpbt-5.0.14.zip, and launch the plpcfgbtGUI (under Windows\plpcfgbtGUI.exe)




   Configuring the Plop image to boot automatically from USB



   • Load the plpbt.bin file, found in the same directory, set the Start mode to Hidden, mark the Countdown checkbox, set the Countdown value to 1, choose USB as Default boot (see above screenshot for the configured settings dialog), and click the Configure plpbt.bin button.
     This will modify the plpbt.bin file that was loaded, in the same directory.
4. Extract the plpbt-createiso.zip, and copy to modified plpbt.bin file from the previous step to the extracted directory.
5. From a command-line prompt, execute create-iso.bat – it will generate a file in the same directory – plpbtmycd.iso.

Create the unRAID VM

1. Launch VMware vSphere Client and log in the the ESXi host.
2. Start the Create New Virtual Machine wizard, and select a Typical configuration:




   Creating the unRAID VM with vSphere – Typical configuration



3. Name the VM:




   Creating the unRAID VM with vSphere – Naming the VM



4. Select a datastore for the VM files (note: this will just hold the VM configuration files, RAM snapshot, and boot media image – no need for much storage):




   Creating the unRAID VM with vSphere – Choosing storage



5. Set guest OS to some generic Linux (e.g. “FreeBSD (32-bit)”):




   Creating the unRAID VM with vSphere – Choosing generic OS



6. Leave Network connections with the default settings:




   Creating the unRAID VM with vSphere – Configuring network



7. Create a small disk (e.g. 32MB, Thin Provision) for the VM boot image:




   Creating the unRAID VM with vSphere – Provisioning virtual disk for the VM



8. On the Ready to Complete stage, check the Edit the virtual machine settings before completion checkbox, and hit Continue:




   Creating the unRAID VM with vSphere – Edit settings before completion



9. Increase the RAM to 2GB:




   Creating the unRAID VM with vSphere – Increasing RAM to 2GB



10. Click the Add… button to launch the Add Hardware wizard, and add a USB Controller:




    Creating the unRAID VM with vSphere – Adding USB controller



11. Choose EHCI+UHCI for controller type:




    Creating the unRAID VM with vSphere – Choosing controller type



12. Launch the Add Hardware wizard again, this time adding a USB Device (make sure the bootable unRAID USB flash drive is plugged in!):




    Creating the unRAID VM with vSphere – Adding USB device



13. Select the USB flash drive from the list of available USB devices:




    Creating the unRAID VM with vSphere – Choosing the unRAID flash drive



14. Confirm and finalize the VM creation process.

Make the unRAID VM boot from USB

1. Using the Datastore Browser, browse to the directory of the VM, and upload the plpbtmycd.iso file created in a previous step:




   Uploading the Plop boot ISO to the datastore



2. Edit the settings of the VM – select the CD/DVD drive 1 item, check the Connect at power on checkbox, set the Device Type to Datastore ISO File, and browse to select the plpbtmycd.iso file that was uploaded in the previous step:




   Setting the Plop bootable ISO as the boot device of the unRAID VM



3. Confirm and start the VM. It should successfully boot all the way into the unRAID console, just without the data drives. At this point I checked the MAC address of the virtual NIC (by running the ifconfig command) in order to configure my router DHCP to assign a static IP address to this VM, before shutting down the VM in order to proceed to configuring the data drives:




   Getting to the unRAID shell console in vSphere, and checking MAC address




This concludes the unRAID-VM creation process, but it still has very little use as long as the data drives are not present, which is what the next section covers.

Configuring the data drives

Let’s review the available solutions for configuring data drives for use in the unRAID VM:

1. Adding the data drives as datastore drives in the ESXi host, formatting them using VMFS, creating maximum-size virtual disks on each drive, and assigning the virtual disks to the unRAID VM.
   1. This is probably the simplest method. It is natively supported in ESXi, and doesn’t involve any “hardware magic”.

   2. This is also probably the worst possible solution, for any and all of the following reasons:

      1. Performance hell: This configuration goes through all possible software and hardware layers for every read/write operation.

      2. Possible capacity loss due to limitations on the size of virtual disks in VMFS, which might be smaller than the actual capacity of the physical drive.

      3. Doesn’t meet my requirement for transparent migration, as it requires reformatting all the drives to VMFS, thus losing the existing data. I don’t have 4TB of swap space laying around…
      4. Doesn’t allow unRAID to manage the drives directly, including SMART parameters and various low-level sensors.

2. Using VMDirectPath I/O to passthrough the disks directly to the unRAID VM, and letting unRAID manage the disks on its own.

   1. This solution sounds great, and meets all the requirements!

   2. But, alas, VMDirectPath I/O can be used to passthrough supported PCI and PCIe devices, and not individual HDDs…

   3. So maybe I can passthrough an entire SATA controller to the VM, and assign all the HDDs on that controller to the unRAID VM?
   4. This indeed would have been great, if it worked, but it didn’t – more details below.
   5. Future note here – I still plan to go back to this method, by installing a PCIe RAID Card (specifically IBM M1015), and assigning it to the unRAID VM with passthourgh. But this requires getting that RAID card…

3. Using Raw Device Mapping to assign the physicals HDDs to the unRAID VM.

   1. This solution almost meets all of my requirements, with the following disadvantages:
      1. It isn’t really direct physical access, so unRAID doesn’t get to manage the drives directly (no SMART parameters and various sensors).

      2. It isn’t natively supported in ESXi, and requires some manual ESXi voodoo that isn’t guaranteed to work in the future.

   2. But, despite the shortcomings, this method is much better than option #1, and I can implement it without waiting for some expansion card – which makes it the chosen solution!

In the following sections I will give further details on my failure with solution #2, and success with solution #3.

During the attempts and experiments I had only one data HDD connected (out of the three), in case I do something stupid and invalidate the data. This is a reasonable safety net, since I already had protection for 1-HDD-loss based on a parity drive. Of course it would have been better to have a full backup, or perform the experiments with non-production drives… (living on the edge :-p )

SATA Controller DirectPath I/O Adventures

As mentioned above, the SATA Controller passthrough alternative was the preferred solution for giving unRAID full control over the data HDDs, so this is what I tried first.

Towards that goal, I launched vSphere Client and logged in to the ESXi host. In the host management interface, the DirectPath I/O Configuration can be found under the Configuration tab, in Advanced Settings:

Clicking the Configure Passthrough… link (top-right) will bring up the Mark devices for passthrough dialog, listing all PCI and PCIe devices detected and available for passthrough:

You can see that individual HDDs are not available for passthrough, which is reasonable considering HDDs are not PCI/PCIe devices. But the ASUS motherboard I have installed in this server (ASUS P8Z68-V Pro s1155) has two on-board SATA controllers, both appear on the list above:

• Intel Corporation Cougar Point 6 SATA AHCI Controller – part of the Intel Z68 Chipset, this controller includes 2 SATA 6Gb/s ports (gray), and 4 SATA 3Gb/s ports (blue).
• Marvell Technology Group Ltd. 88SE9172 – additional PCIe SATA controller that includes 2 SATA 6Gb/s ports (navy blue).

Now, remember that the ESXi host itself needs its own datastore drives, so it will be using some SATA ports, but I don’t see a reason for installing more than two drives for the datastore, so why not use the Marvell controller for ESXi, and passthrough the Intel controller to unRAID? Wouldn’t it be great?

It would! But, sadly, it turns out that the Marvell controller is not supported by ESXi at all… In all possible configurations I tried (connecting every HDD I have to each Marvell port), ESXi simply didn’t detect the HDD connected – as if nothing’s connected… I assume this is a compatibility issue, as the controller does not appear on the ESXi 5.1 I/O Compatibility Guide. I tried asking about this on VMware Communities, but got no response so far.

Another approach I tried is to work around the compatibility issue, by letting the unRAID VM to deal with the Marvell controller – configure the Marvell using passthrough to the VM, and let the VM use it directly. I know unRAID is able to deal with this controller, since it worked fine back in the Mordor 1.0 days. This is of course a very partial workaround, as it gives unRAID only two HDDs, which is not enough…

1. So I configured the Marvell controller for passthrough:




   Marking the Marvell SATA controller for passthrough



2. Edit the settings of the unRAID VM, and launch the Add Hardware wizard in order to add the Marvell controller as a PCI device:




   Adding a PCI device to the unRAID VM via vSphere



3. Select the device from the list:




   Selecting the passed-through Marvell SATA controller to unRAID VM as a PCI device



4. Confirm and finish:




   Finishing the wizard for adding the Marvell SATA controller to the unRAID VM




This appeared to be OK, but once I booted the unRAID VM with HDDs connected to the Marvell ports, unRAID could not see any HDDs connected. I was unable to solve this issue (which is also probably part of the incompatibility of the Marvell controller), and decided to drop it in favor of the RDM solution, at least until I get the IBM M1015 RAID Card.

Raw Device Mapping Configuration

As mentioned, this solution isn’t natively supported in ESXi. This means that vSphere Client access to the host is not sufficient, and some operations must be performed manually on the host, using direct SSH access.

This is not a tutorial about SSHing into ESXi hosts, so I sum it up with this: enable Tech Support Mode in the ESXi host, and use some SSH client (e.g. PuTTY in Windows) to connect to the host.

It should be noted here that I found the RDM mapping of local SATA storage for ESXi post useful, with some variations based on a LimeTech forum thread.

1. In vSphere Client, under the host Configuration tab, in the Storage settings, in the Devices view, verify that the NAS-data-HDD is recognized:




   Verifying that the data HDD is recognized by ESXi in vSphere



   (I have 2 datastores drives, and the 3rd device is one of the NAS-data-drives – all are WDC)

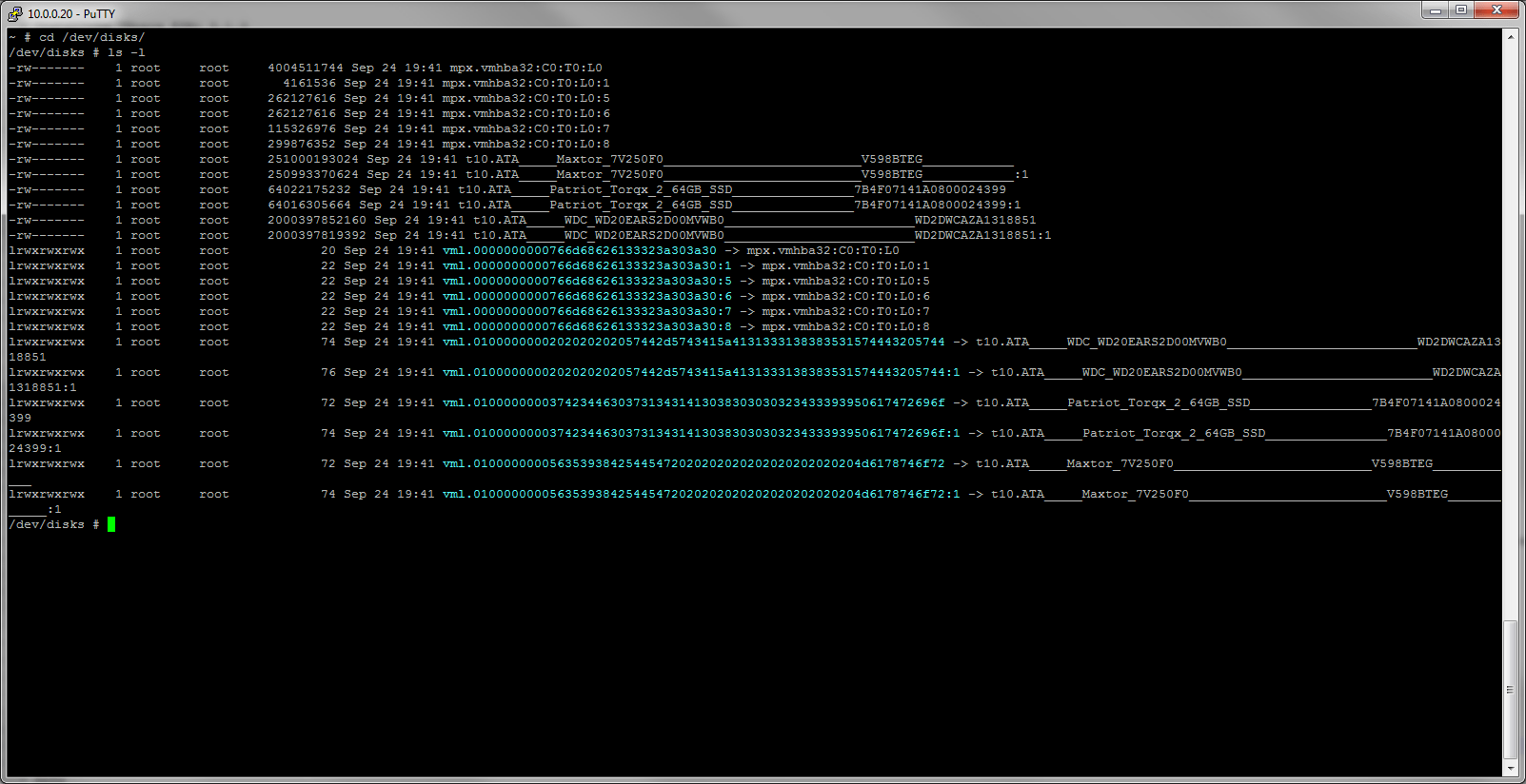

2. In an active SSH session (logged on as root), run ls -l /dev/disks to obtain the full handle of the source HDD:




   Obtaining the full handle of the HDD is ESXi SSH session



   (my source HDD is t10.ATA_____WDC_WD20EARS2D00MVWB0_________________________WD2DWCAZA1318851, which I will later refer to as <HDD_ID> for brevity and generality)
3. Decide on a destination for the RDM handle. For instance, I want to use the RDMs in the unRAID VM, and I want to be able to keep track of which RDM belongs to which physical HDD, so I want to create the RDMs in the unRAID VM directory (e.g. /vmfs/volumes/Patriot-64G-SSD/unRAID), and to name them following the scheme rdm_HDD-ID.vmdk.
4. Create the RDM using the vmkfstools program: vmkfstools -a lsilogic -z /vmfs/devices/disks/<HDD_ID> /vmfs/volumes/<RDM-destination>.vmdk:




   Creating the RDM using vmkfstools in a ESXi SSH session



5. Back in vSphere Client, edit the settings on the unRAID VM, and launch the Add Hardware wizard to add a Hard Disk:




   Adding a new Hard Disk to the unRAID VM with vSphere



6. Select Use an existing virtual disk:




   Selecting the “Use an existing virtual disk” option in the Add Disk vSphere wizard



7. Browse to the destination where the RDM was created and choose it:




   Choosing the created RDM file as the virtual disk to add to the unRAID VM



8. Select a Virtual Device Node SCSI (#:0), where # is a number of a SCSI controller that is not yet in use by the VM! (usually SCSI (1:0)) – this is very important!
   Also set the mode to persistent independent:




   Selecting an UNUSED SCSI virtual device node during the add disk wizard in vSphere



9. Finish the wizard:




   Finishing the add disk wizard in vSphere



10. Note that in addition to an extra Hard Disk, the Hardware inventory of the VM shows also a New SCSI Controller (because I used a yet-unused SCSI controller in a previous step, remember?):




    Summary of performed changes, before applying the changes



    See that it is configured as LSI Logic Parallel? It is very important to change the type of the SCSI Controller to LSI Logic SAS:




    Editing the new SCSI controller that was created as LSI Logic Parallel



    Changing the SCSI controller type to LSI Logic SAS



    I didn’t do that at first, and unRAID did not recognize the RDM’ed HDD as a result… (no harm done, though)
11. Boot unRAID, and verify the HDD is recognized (e.g. by running ls -l /dev/disk/by-id/):




    Checking that the RDM’d disk is recognized by unRAID in the unRAID shell



    Check that it is available in the list of devices in the unRAID management web interface:




    Checking that the RDM’d disk is recognized by unRAID in the unRAID web admin



12. Now that the process is validated using a single HDD – shutdown, connect the other HDDs, and repeat:




    Checking that all disks are recognized by ESXi



    Running vmkfstools to create RDM files for all disks in ESXi SSH session



    Viewing all RDM files in the vSphere datastore browser






    Adding all the disks to the unRAID VM as mapped raw LUNs



    Checking that unRAID successfully recognized all RDM’ed disks in the web admin



    • The vmkfstools commands:

      # vmkfstools -a lsilogic -z /vmfs/devices/disks/t10.ATA_____WDC_WD20EARS2D00MVWB0_________________________WD2DWCAZA1318851 /vmfs/volumes/Patriot-64G-SSD/unRAID/rdm_WD2DWCAZA1318851.vmdk
      # vmkfstools -a lsilogic -z /vmfs/devices/disks/t10.ATA_____WDC_WD20EARX2D00PASB0_________________________WD2DWCAZAA396700 /vmfs/volumes/Patriot-64G-SSD/unRAID/rdm_WD2DWCAZAA396700.vmdk
      # vmkfstools -a lsilogic -z /vmfs/devices/disks/t10.ATA_____WDC_WD20EARX2D00PASB0_________________________WD2DWCAZAA463853 /vmfs/volumes/Patriot-64G-SSD/unRAID/rdm_WD2DWCAZAA463853.vmdk


And this concludes another pretty-long-post, just about setting up a single VM!

Go up to the Mordor project page for more Mordor adventures. Or maybe jump straight to the post describing how I switched from RDM-based-NAS-drives to a RAID card as passthrough device.
